Edit graphics in the Designer

You can customize new or existing graphics in the Designer.

1. Open or create a project in Captivate.


   Tips

   • To open an existing project, choose File > Open, select the desired project, and click Open.
   • Navigate to File > Recent Projects to open any projects you recently saved.
   • To create a new project, choose File > New.

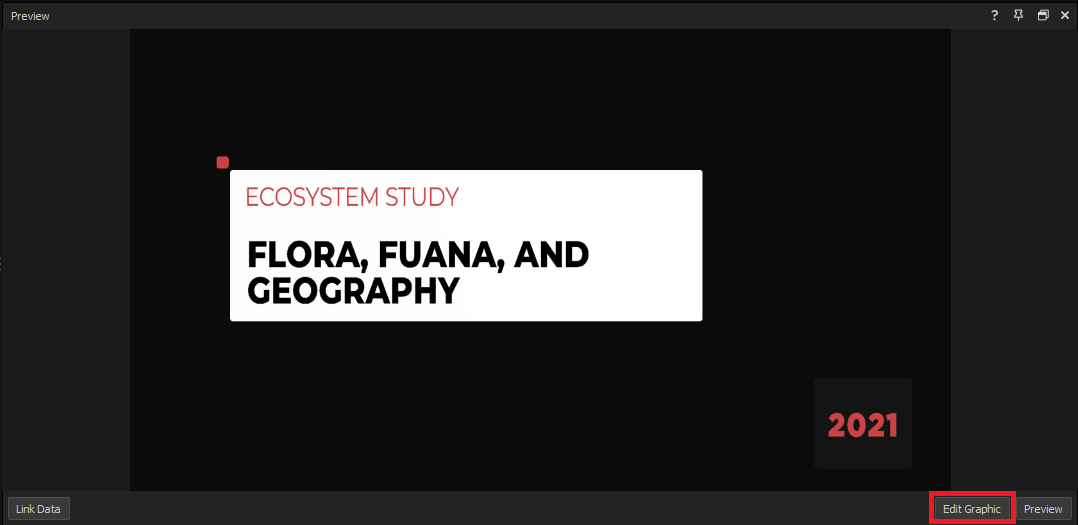

2. In Captivate's playout interface, select a graphic layer in the Layers workspace, then click the Edit Graphic button in the Preview panel.





   Tip: To add a new graphic layer to the channel, drag a graphic from the graphics library and drop it in the layers workspace, or choose New > Graphic . See Channel panel management for more information.

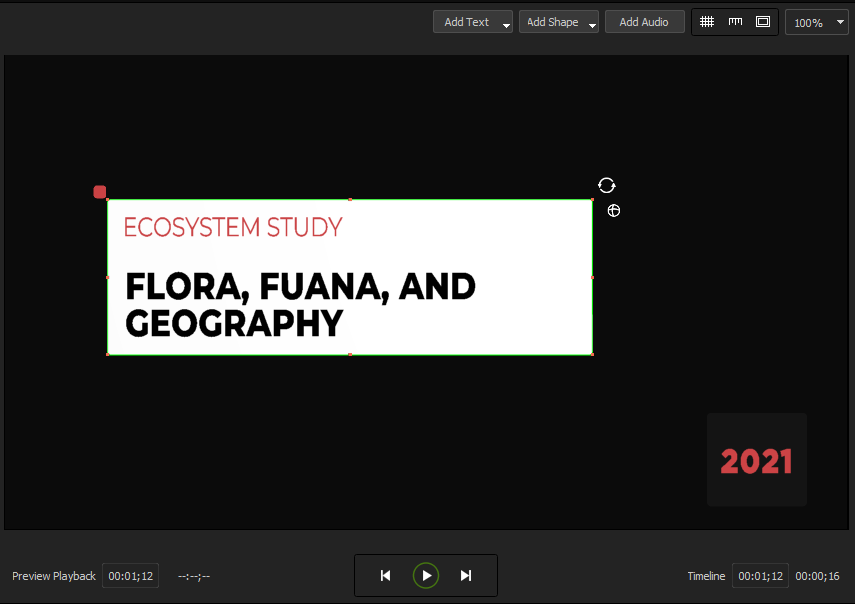

   The graphic opens in the Designer.



3. In the Designer, make the desired changes to customize graphics with the style and motion you require. See the following articles and sections in our help center for more information.
   • Designer workspace overview
   • Basic Graphic Creation & Import
   • Customizing Design Layers & Animation
4. When you're finished editing the graphic in the Designer, click the Keep changes  button in the bottom-right corner of the Timeline panel to save the graphic to your project's current Captivate session.

The updated graphic will render in the Layers workspace.
