Captivate enable you to include custom clocks in your designs, which you can control from within Captivate or an Internet browser. Complete the steps in this article to connect your design to a custom clock.
- In Captivate 's playout interface, open a project (if a project isn't already open) and select a graphic in the playlist.
Tip: Want to create a new graphic? Open the Graphics Library panel and drag a graphic from the library to your channel. If you create a new graphic with a clock-specific design from the library’s Inputs section, your graphic is already connect to a clock input, so go to step 3. If you create a new graphic from the library’s Designs section, complete step 2 to add the clock input to your graphic.
- Choose Select a data source > General > Clocks > Custom Clock to add the Clocks input to the graphic. The Clock input you added appears as a tab in the Layer Properties panel and in the playlist for that graphic.

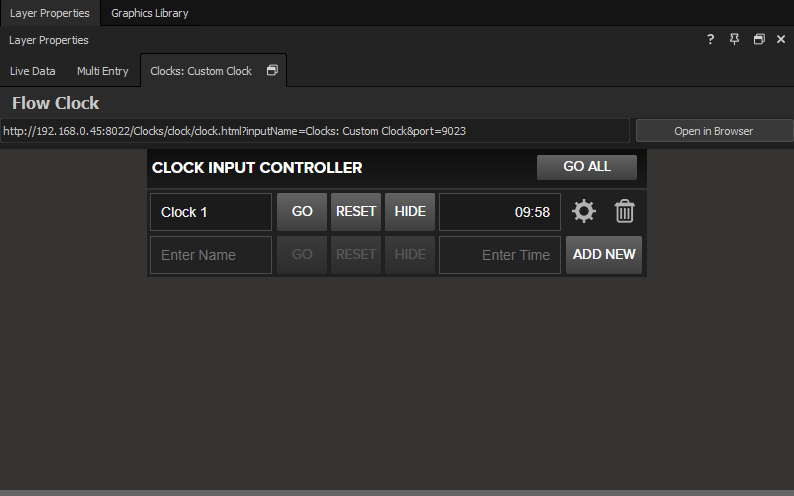

- Enter a name for the first custom clock in the Clocks panel.
- Click Settings and complete the following steps in the Settings dialog.
- Enter a Default Time.
- Select a Format.
- Select the Direction in which the clock will run.
- Click Save.
- Click the Reset button to update the clock based on the settings you entered in the previous step.
- To create additional clocks, click Add New and repeat steps 3-5.

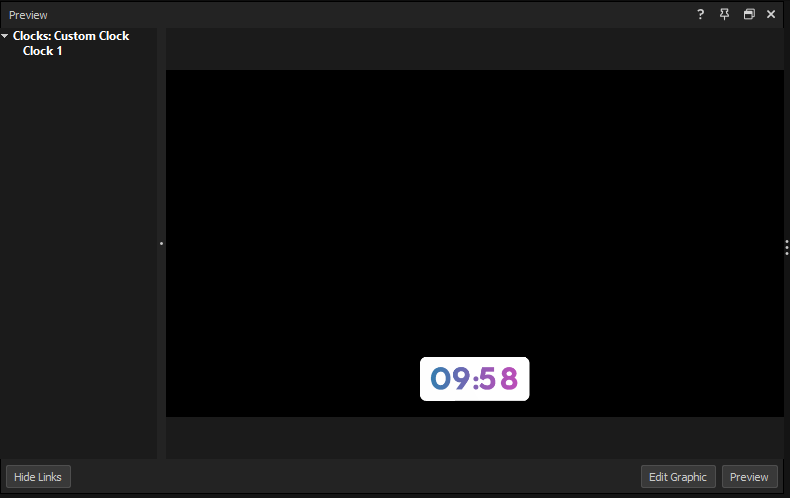

- Click the Link Data button in the Edit / Preview panel to view the Clocks input and variables. (If the input's variables aren't visible, expand the Clocks list.)
- Click and drag a Clocks variable onto an object in your graphic. Repeat this step for each variable you want to include in your graphic.
Troubleshooting: If you are having issues, edit graphic > select the layer you linked the clock to. Check the Motion Data tab > ensure that Text Variable is checked, as well as, Pattern Variable. Also, check that the correct variable is listed in the dropdown menus under the Text Variable.
Tip: To disconnect a variable from an object in your graphic, right-click a variable in the Preview panel and choose Disconnect variable.
Your clock is now set up and ready to operate. You can control the clock with the buttons in the Clocks panel, or click the Open in Browser button if you want to control the clock from an Internet browser.
