If you're licensed for a version of Captivate, you can output graphics to NDI-enabled devices.
In Captivate's playout interface, click the Outputs menu and choose NDI.

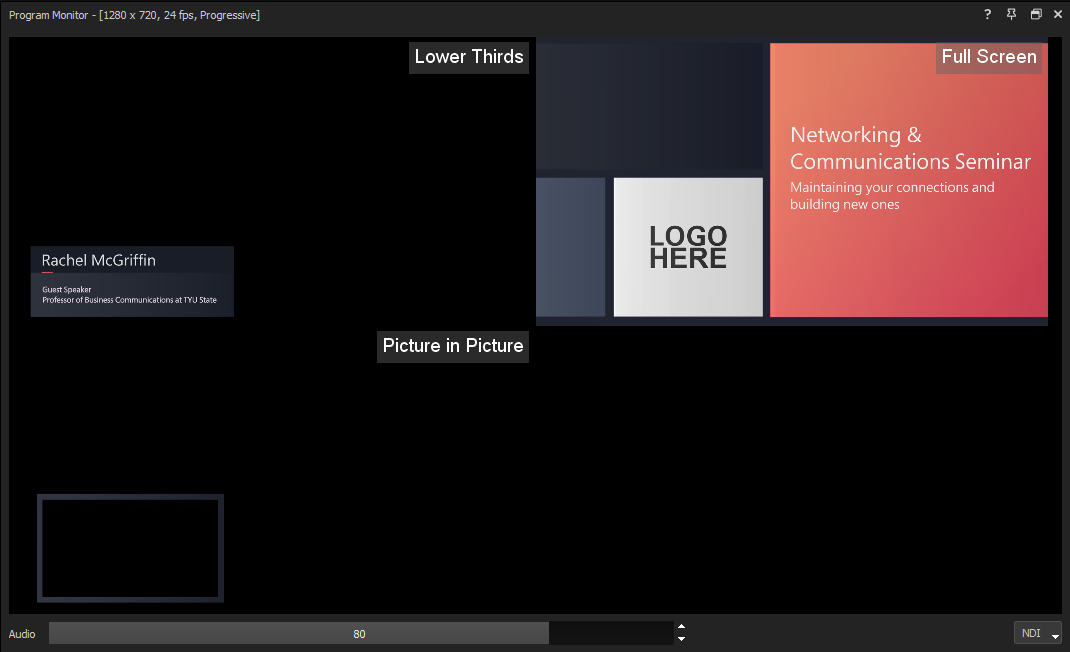

Each channel on the Channel panel becomes a unique NDI channel. The following example shows three channels: Lower Thirds, Picture in Picture, and Full Screen.
Tips
- To rename a channel, double-click a channel name, enter a new name, and press ENTER to save the new name.
- Captivate Broadcast users can create up to 16 channels; and Captivate Sport and Present users can only create 1 channel. To create a new channel, click the
button to the right of the channel names.
- To delete a channel, right-click (on Windows) or Control + click (on Mac) a channel name, choose Delete, and click Yes when prompted to confirm that you want to delete the channel.
- Click a graphic's Play
button to broadcast the graphic on its matching NDI channel, which you can monitor in Captivate's Program Monitor panel.
