Output graphics with SDI

If you're licensed for a version of Titler Live, you can output graphics to supported SDI cards, which are listed below.

Important! Your SDI card or external device must have two or more SDI outputs and support key/fill output channels.

Output graphics to SDI

  1. In Titler Live's playout interface, click the Outputs menu, choose SDI, and select Blackmagic or AJA.

    Note: The SDI menu appears only when Titler Live detects a compatible SDI card. If you have a compatible card and the card doesn't appear in the SDI menu, verify the SDI card's latest driver is installed on your computer.

    After you select an SDI output, the Card Output Connections dialog opens, which looks similar to the following DeckLink example.

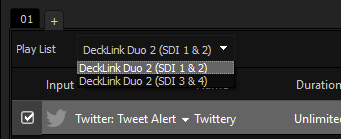

  2. From the drop-down list of SDI channels on the Channel Panel, select the SDI output that you want to assign to the channel.


  3. In Titler Live's Layer's workspace, click a graphic's Play actions-btn-live.png button to broadcast the graphic to your SDI receivers.

The output from Titler Live should now display in your SDI receivers.

Note:  Please check your specific SDI card's HD Video Standards as not all the possible Project Setting options that are available in Titler Live are always supported.  Usually you will get an alert if the project settings you have assigned are not supported by the card itself.  You will only be able to utilize the functionality of the card with the supported HD Video Standards set by the SDI card manufacturer.

Back to top

Supported and unsupported SDI cards

As of this publishing, Titler Live 5 supports the following SDI cards from BlackMagic and AJA.


Supports Windows and Mac.

Drivers 10.9.12 or newer required.

Supported SDI devices:

  • DeckLink Duo 2
  • DeckLink Quad 2
  • DeckLink 4K Extreme
  • DeckLink 8K Pro
  • UltraStudio HD Mini
  • UltraStudio 4K Mini
  • UltraStudio 4K Extreme

Unsupported SDI devices:

  • DeckLink Mini Monitor (base and 4K)
  • DeckLink Mini Recorder (base and 4K)
  • DeckLink Duo (original)
  • DeckLink Quad (original)
  • DeckLink Studio 4K
  • DeckLink SDI 4K
  • UltraStudio Mini Monitor
  • UltraStudio Mini Recorder

Back to top


Supports Windows only.

Supported SDI devices:

  • Kona 4
  • Kona 3G (discontinued)
  • Io 4K Plus
  • Io 4K
  • Io XT
  • Corvid 44
  • Corvid 88
  • Corvid 22
  • Corvid 24

Unsupported SDI devices:

  • Kona 5
  • Kona HDMI
  • Kona IP
  • Kona LHi
  • Kona 1
  • Kona LHe Plus
  • Io IP
  • Io Express
  • T-Tap
  • U-Tap SDI
  • U-Tap HDMI
  • Corvid 3G
  • Corvid
  • Corvid HEVC
  • Corvid HB-R
